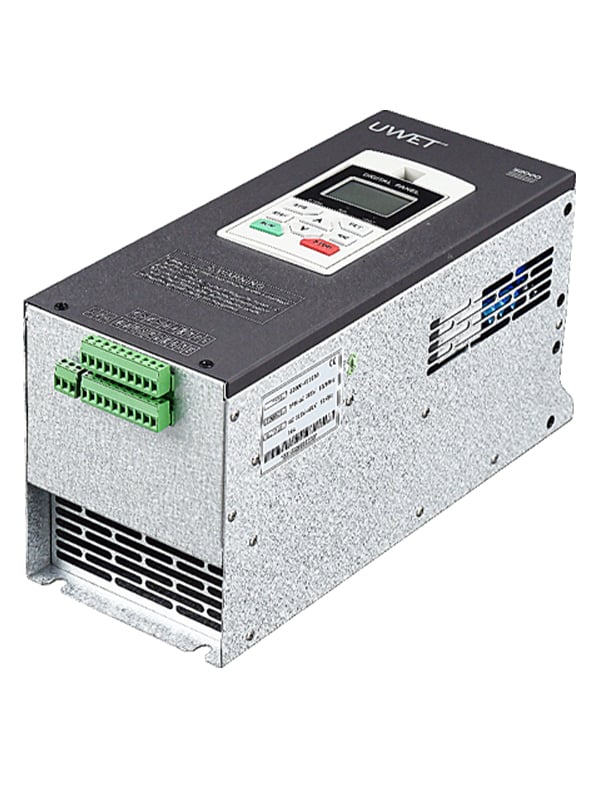

The S series is a mini model based on the H series machine platform. The S series machines have the same performance as the H series machines, but they are much smaller than the H series machines. S series products are used in large current driving applications with lamp voltage below 450V. The peak value of excitation voltage of 4T (three-phase 380V) model is above 5KV, and the peak value of excitation voltage of 2S (single-phase 220V) model is above 3KV, which has strong lighting ability. With large output current and rich external expansion functions, it has been widely used in more than 20 fields such as painting, printing, woodworking, PCB, military medical and so on.
Input voltage: According to the model, single phase 220V (2S), three phase 380V (4T)
Input frequency: 50/60HZ
Output voltage: see below model list
Output current: see below model list
Output frequency: 1KHZ
Control method: power vector
High voltage isolation: non-isolated
Control interface: RS485, TCP/IP, CANOPEN, digital IO, analog IO
Debugging interface: LCD operation panel, both Chinese and English interface
Built-in lamp tube exhaust control & frequency converter of cooling fan to optimize PID
Support light intensity probe closed loop control
Please contact us if you do not find the match power supply for your lamp. | ||||||
Input Voltage | Model No. | Max Power | Max Voltage | Max Current | Lamp Voltage | Recommendation |
(KW) | (V) | (A) | (V) | (V) | ||

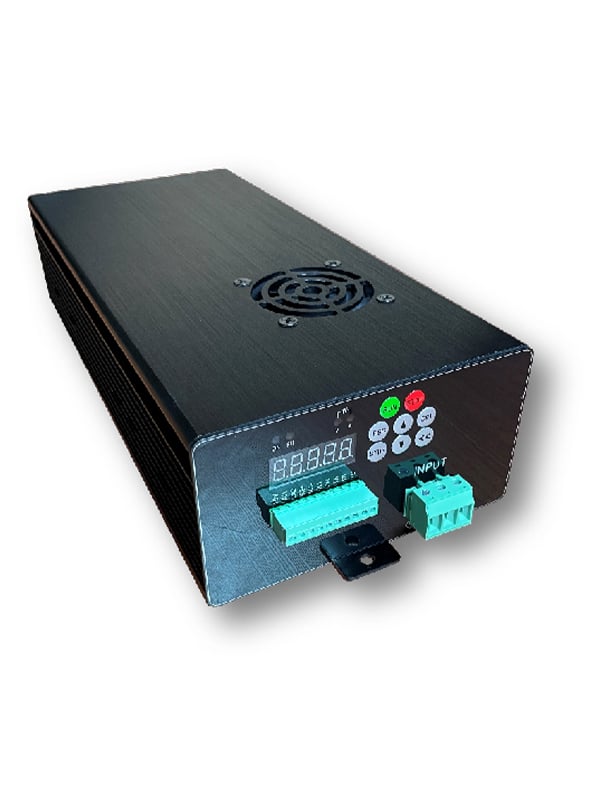

220 single phase | S2000-2SC015A | 1.5 | 300 | 10 | 160-300 | 250 |
Share with 1kw | ||||||
220 single phase | S2000-2SC025A | 2.5 | 220 | 17 | 160-220 | 200 |
Share with 2kw | ||||||
360-460 three phase | S2000-4TB030A | 3 | 430 | 13 | 300-430 | 380 |
360-460 three phase | S2000-4TB040A | 4 | 430 | 15 | 300-430 | 380 |
360-460 three phase | S2000-4TB050B | 5 | 430 | 15 | 340-430 | 400 |
