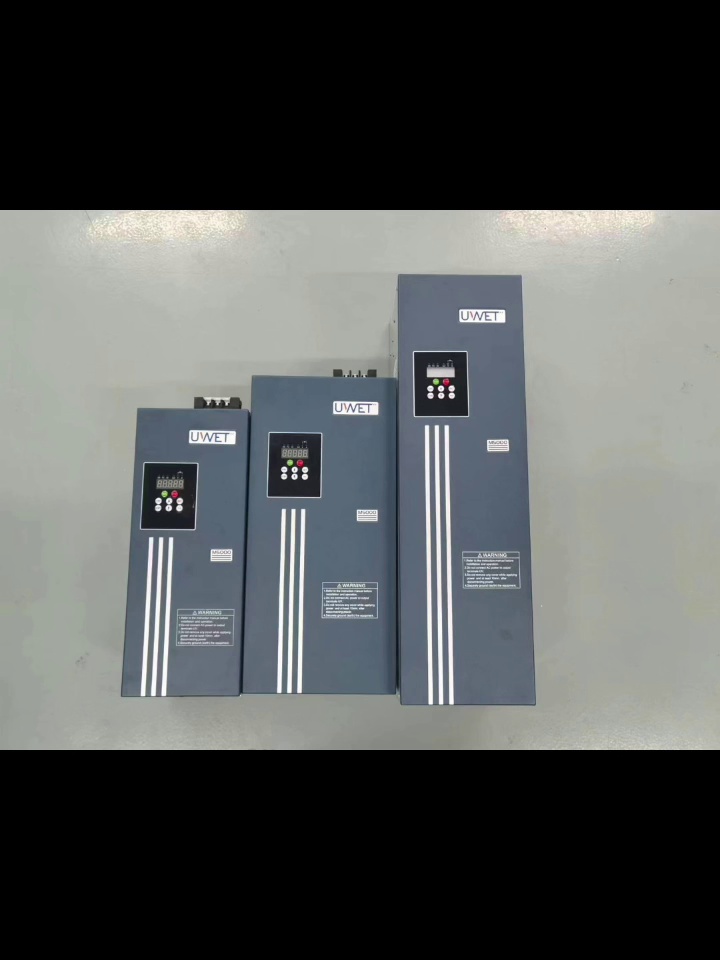

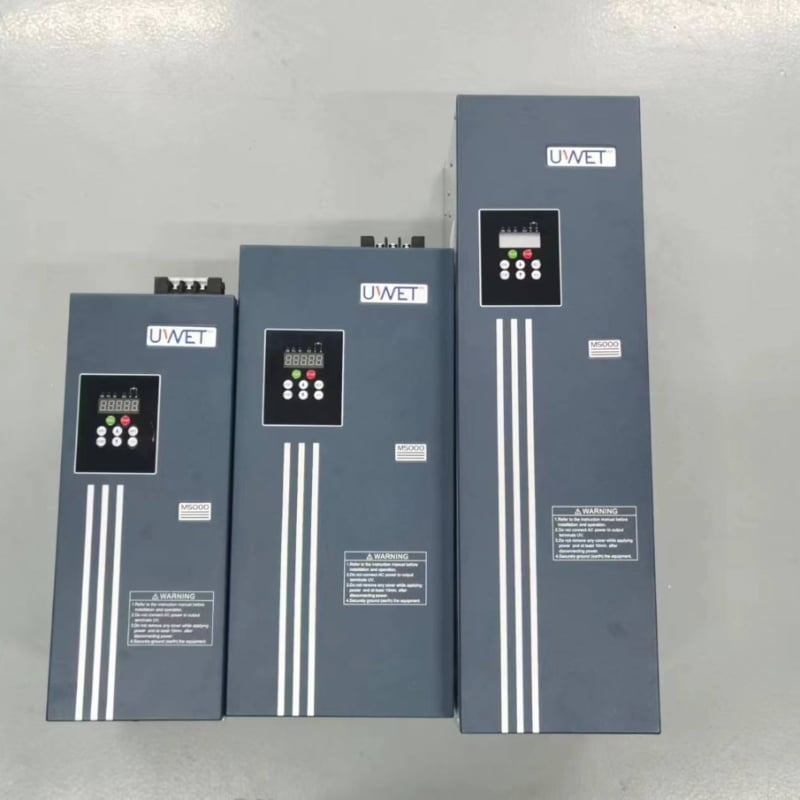

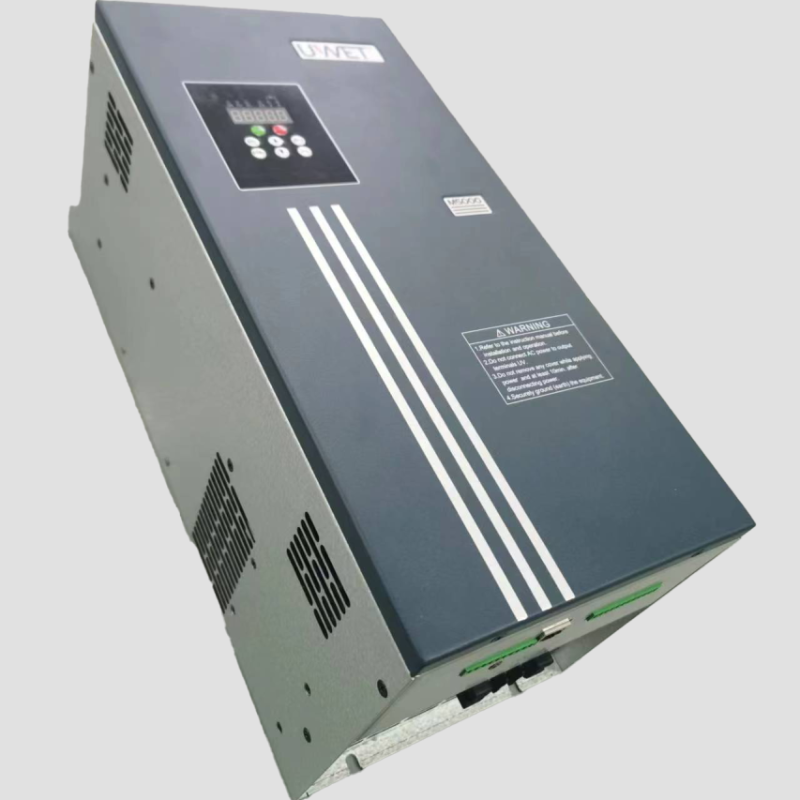

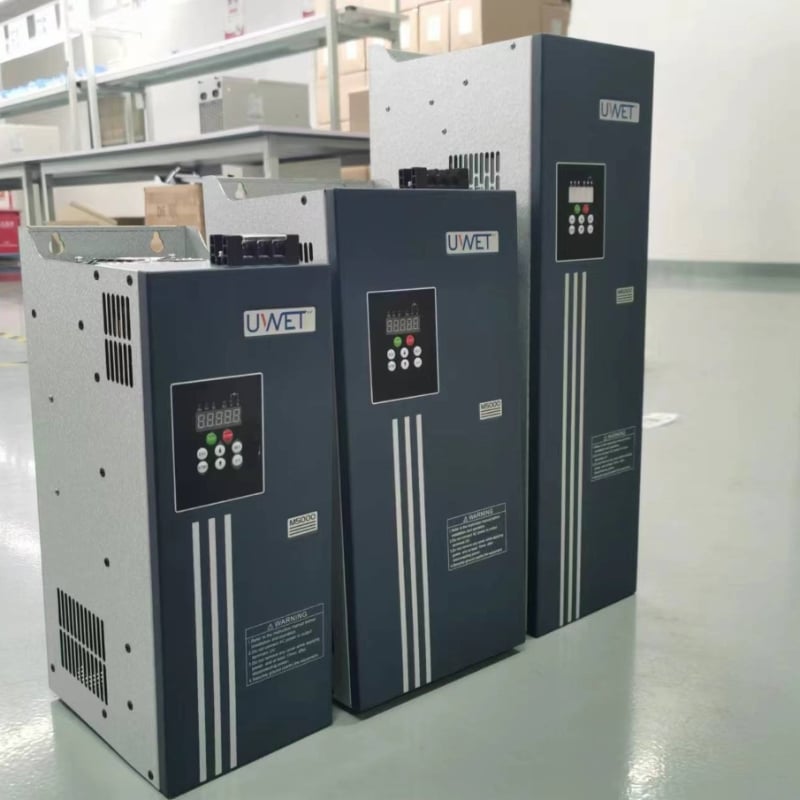

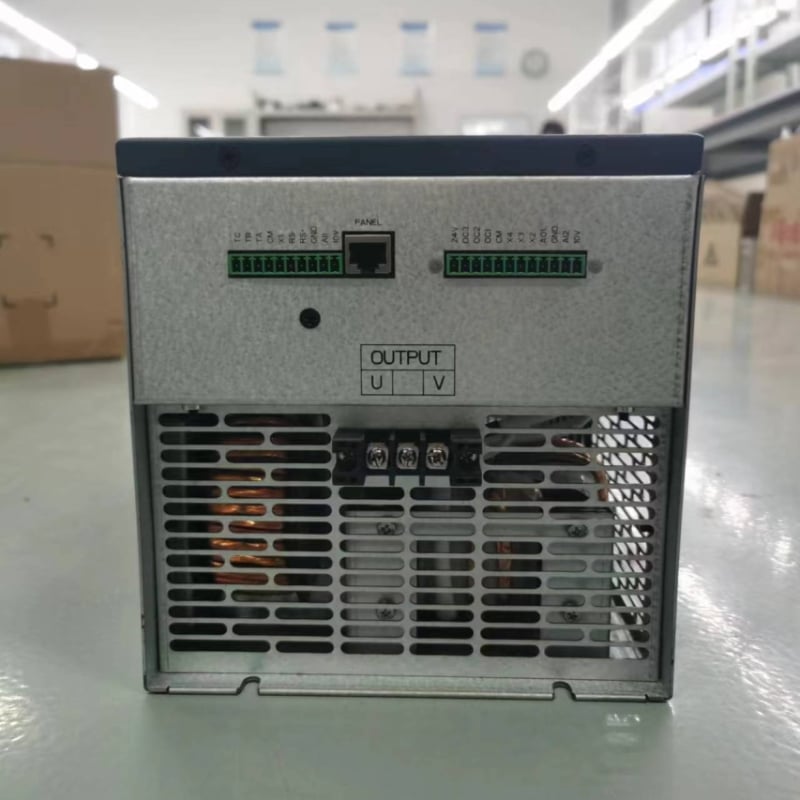

UV Power Supply-M5000 Series

M series is a high-performance electronic rectifier developed by UWET for high-pressure mercury lamps. This series of power supplies adopts high-performance MCU as the control core and excellent thermal design to creative advanced products. Compare M3000, lighter in weight and smaller in size.

UV Power Supply-M5000 Series

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Function Introduction

1) Flexible control method: standard operation panel control, external terminal control, and RS485 communication control are optional.

2) Rich lighting characteristics: High-pressure mercury lamp and metal halide lamp parameters are optional.

3) Automatically match the lamp: As long as the rated power of the lamp is set correctly, the power supply automatically compensates for the rated tube voltage error of the lamp.

4) Automatic compensation of lamp ambient temperature: Automatically compensates for energy drops caused by drafts.

5) Status monitoring: This machine comes with an digital tube that displays the working status of the machine and lamps in real time.

6) Rich status signal output: fan control, fault alarm, startup completion, etc.

7) The standard operation panel is easy to use: start and stop control, power setting, status monitoring, parameter modification, etc.

Model List

Contact us if you do not find the match power supply for your lamp.
Model	Power (KW)	Input Current (A)	Output Voltage (V)	Max Current (A)	Recommend Voltage（V）
M5000-4T0030A	3	4.6	500-850	7	750
M5000-4T0040A	4	6.1	500-850	8	750
M5000-4T0050A	5	8.0	600-850	9	750
M5000-4T1050A	5	8.0	800-1000	7	950
M5000-4T0060A	6	9.3	600-850	10	750
M5000-4T1060A	6	9.3	800-1000	9	950
M5000-4T0080B	8	12.3	700-850	12	750
M5000-4T1080B	8	12.3	800-1000	10	950
M5000-4T2080B	8	12.3	1000-1250	8	1200
M5000-4T1100B	10	15	900-1000	11	950
M5000-4T2100B	10	15	1100-1250	9	1200
M5000-4T3120B	12	18.2	1200-1700	12	1600
M5000-4T4120B	12	18.2	1700-2100	10	1850
M5000-4T3150C	15	22.8	1300-1700	12	1600
M5000-4T4150C	15	26	1700-2100	10	1850
M5000-4T3170C	17	26.5	1500-1700	12	1600
M5000-4T4170C	17	26.5	1700-2100	10	2000

Technical Indicators and Specifications

Input	Rated voltage, Frequency		3 PHASE（4T#SERIES）380V 50/60Hz 1 PHASE（2S#SERIES）220V 50/60HZ
	Allowance of Voltage Floating		Determine according to model
Output	Voltage		Determine according to model
	Frequency		8K Hz ～16K Hz
	Overload		110% 10min
Control Method			Vector Control
Control Characteristic	Power setting Resolution		1%
	Current Limit		Power enable settings
	Voltage Limit		110% of the rated tube pressure of the lamp
	Power Limit		Rated output lamp power
	Running Under Voltage Suppression		Especially for users with low grid voltage and frequent fluctuations in grid voltage, even if the voltage is lower than the allowed voltage range, the system can maintain the longest possible operating time based on a unique algorithm and residual energy allocation strategy.
Typical Function	Standby		Set standby power consumption when the device is intermittently used for energy-saving occasions.
	Working Time Records		Able to read the working time of lamps during operation
	RS485 Communication		Standard configuration RS485 communication interface, run and stop commands and machine status reading
	Run Function		External dry contact controls machine start and stop
	Fault Analysis		With fault record query and fault cause analysis functions
Display	Operation Panel	Run State	Optional monitoring of output voltage, output current, set power, output power, etc.
		Parameter Setting	Relevant parameter values can be set according to actual requirements
Protection / Alarm Function			Overcurrent, overvoltage, undervoltage, overheating, short circuit, internal memory failure, etc.
Environment	Ambient Temperature		-10ºC-+50ºC（Not Frozen）
	Ambient Humidity		Below 90% (no frosting)
	Surroundings		Indoor (no direct sunlight, no corrosion, flammable gas, oil mist, dust, etc.)
	Altitude		Below 1000m
Structure	Protection Level		IP52

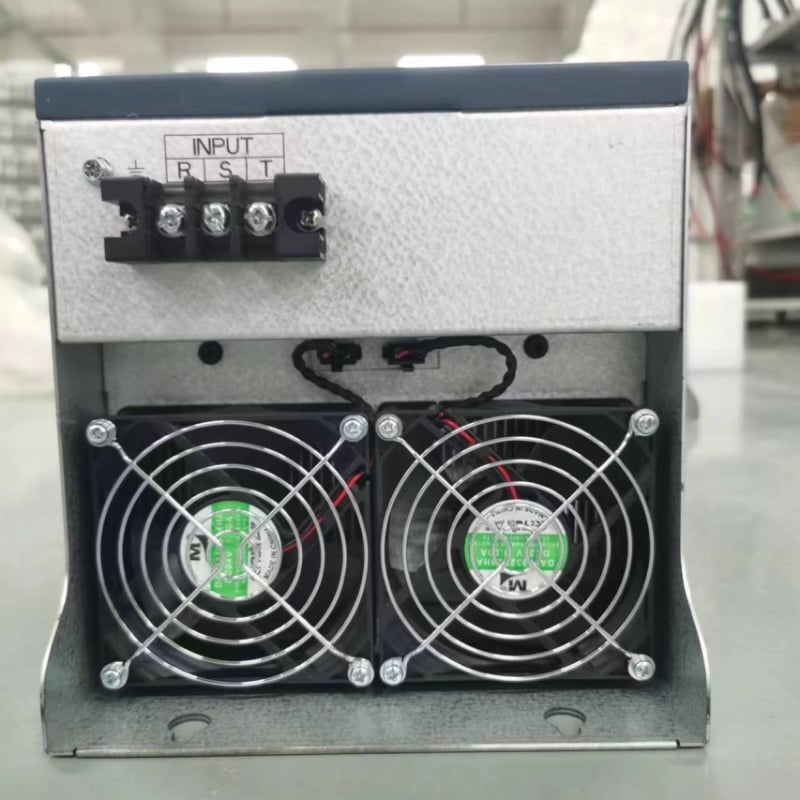

	Cooling Method		Independent air duct design forced air cooling.
