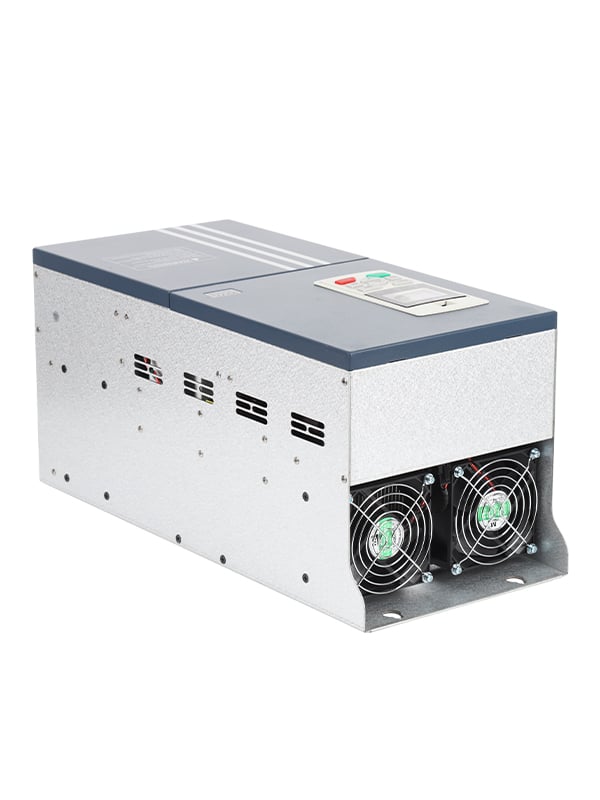

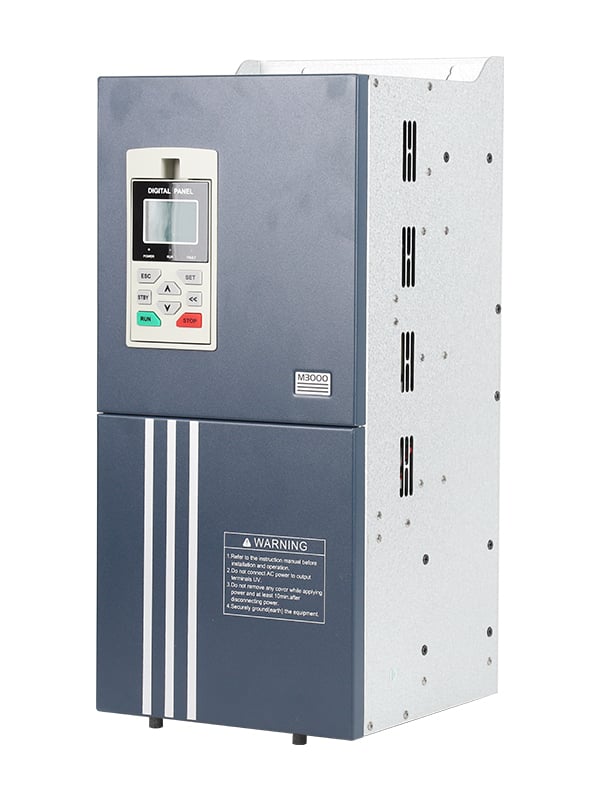

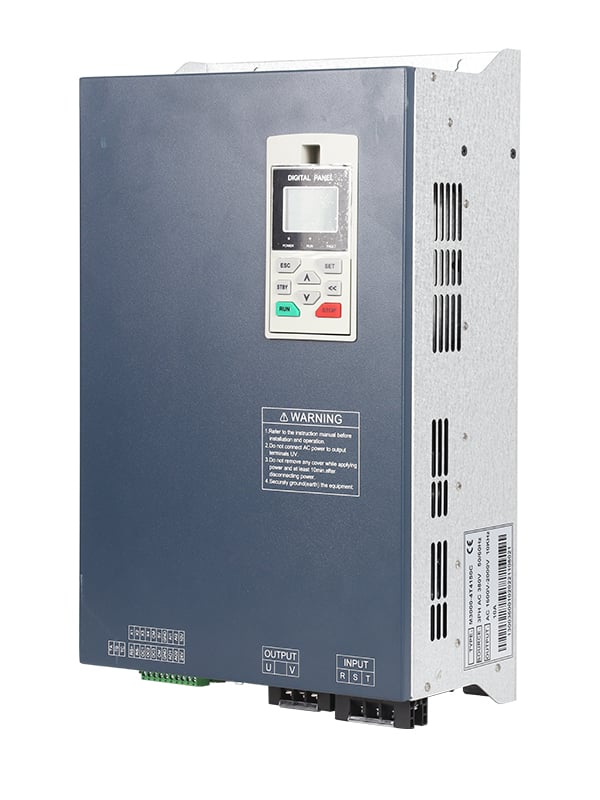

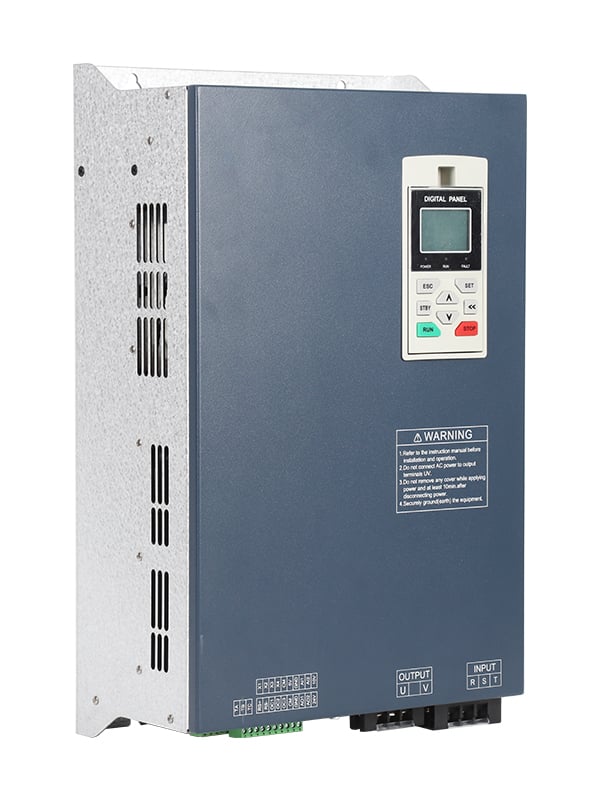

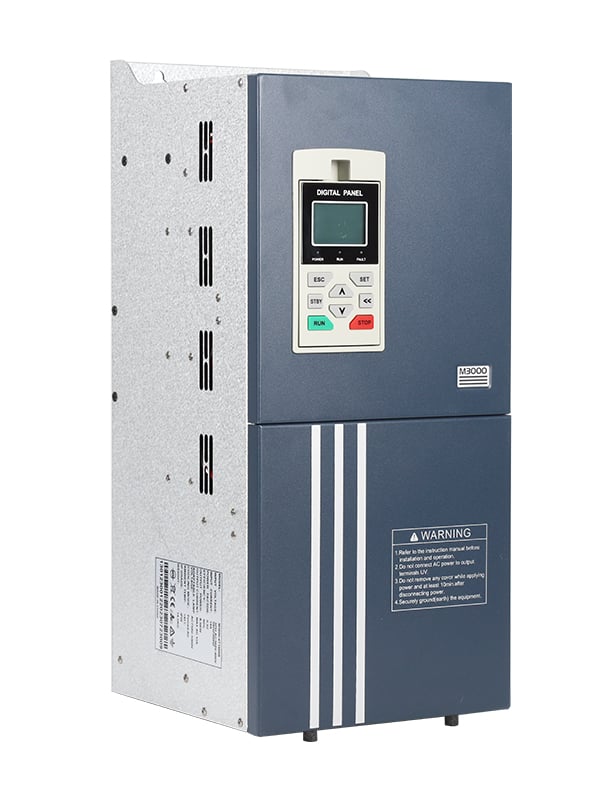

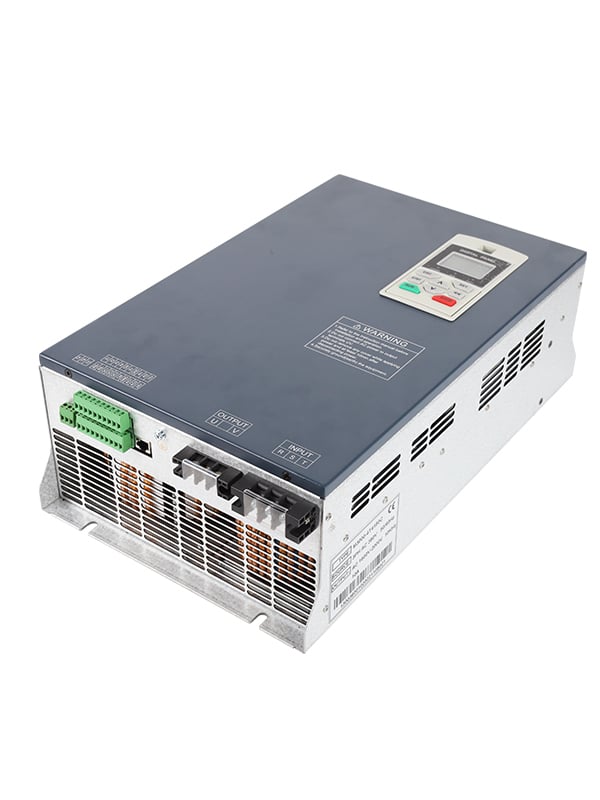

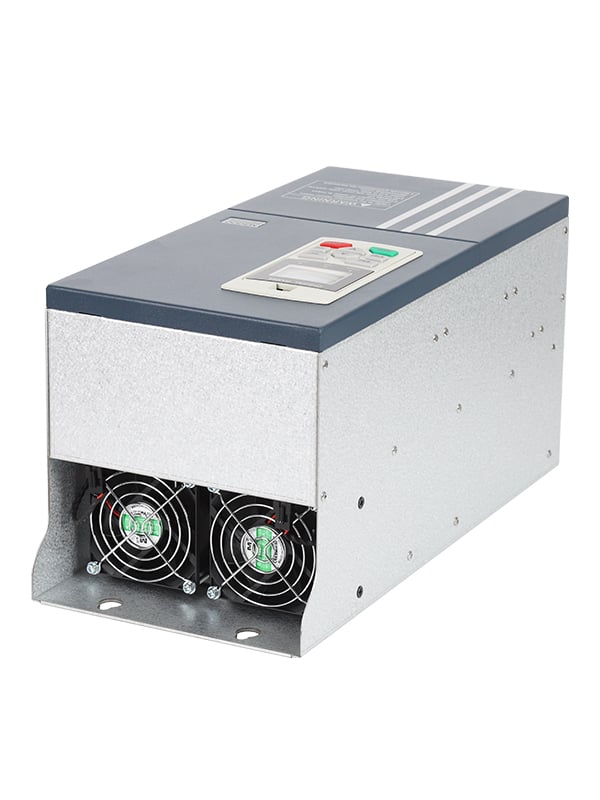

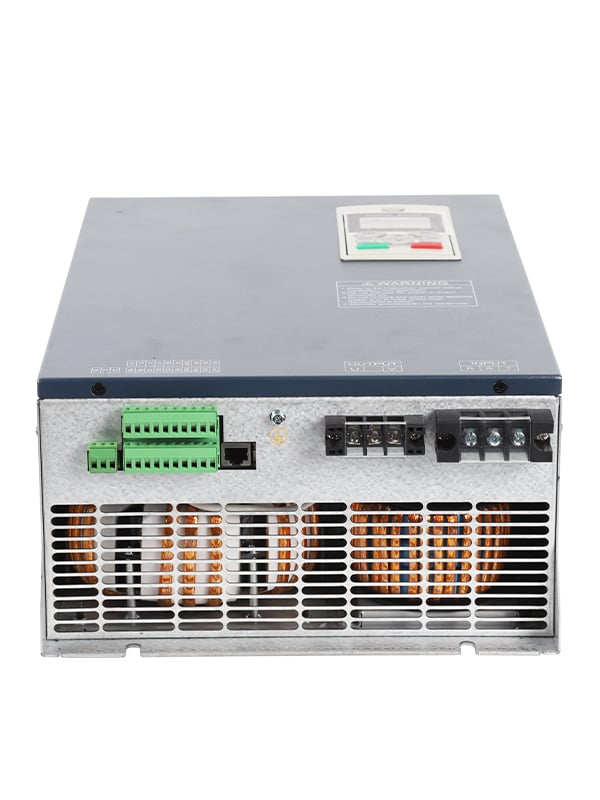

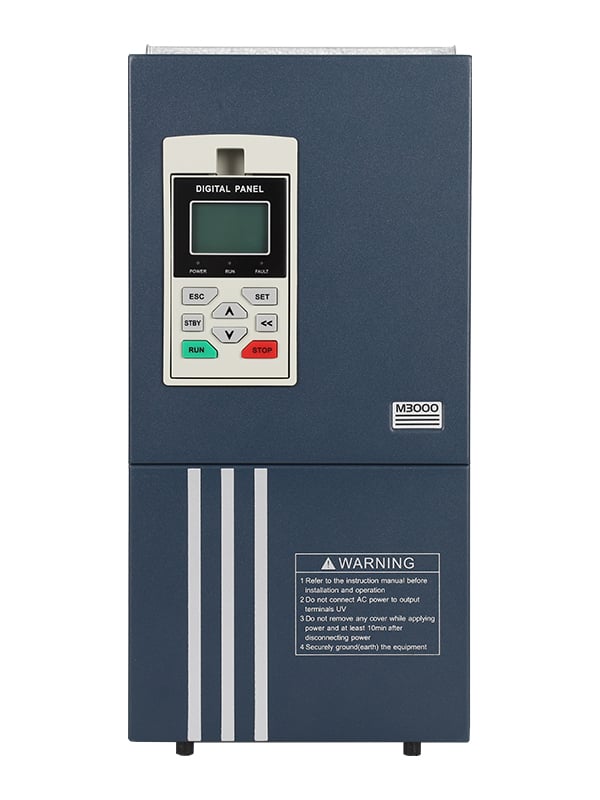

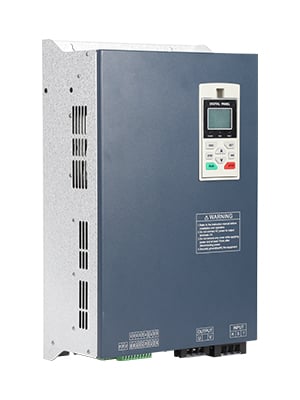

UV Power Supply-M3000 Series

Input

Rated voltage, frequency

（4T#series）380V 3PHASE 50/60Hz

（2T#series） 220V 3PHASE 50/60Hz

 （5T#series）480V 3PHASE 50/60Hz

Voltage allowable range

Determined by model

Output

Lamp Voltage

Determined by model

Frequency

8K Hz ～16K Hz

Overload Capability

110% 10min

Control Mode

Vector Control

Control Characteristic

Power Setting

Resolution

1%

Current Limitation

Power Allowable Setting

Voltage Limitation

110% of rated lamp voltage

Power Limitation

Max Rated Output Power of Lamp

Under-voltage suppression in operation

Especially for users with low grid voltage and frequent fluctuation of grid voltage,

even below the allowable voltage range, the system can maintain the longest running

time according to unique algorithm and residual energy allocation strategy.

Typical Function

Standby

Set standby power consumption when equipment is intermittent for energy-saving applications

Working Time Record

can read lamp working time in operation

RS485 Communication

Standard Configuration RS485 Communication Interface,

Running and Stopping Commands and Machine Status Reading

The Function

of Operation

Using External Dry Contact Control to Start and Stop

Fault Analysis

with function of fault record query and fault cause analysis

Display

Operational

panel display

Operational Status

Monitor output voltage, output current, set power, output power, etc.

Parameter Setting

Set the relevant parameter values according to actual requirements.

Protection / Alarm

Protection / Alarm of Over current, overvoltage, under voltage,

overtemperature, short circuit, internal memory failure

Environment

Ambient temperature

-10ºC--+50ºC（not frozen）

Ambient humidity

Below 90%（no frost）

Ambient environment

Indoor (no direct sunlight, no corrosion, no flammable gas, no oil mist, no dust, etc.)

Altitude

Below 1000m

Structure

Degree of Protection

IP52

Cooling Method

Independent air-duct design forced air cooling
