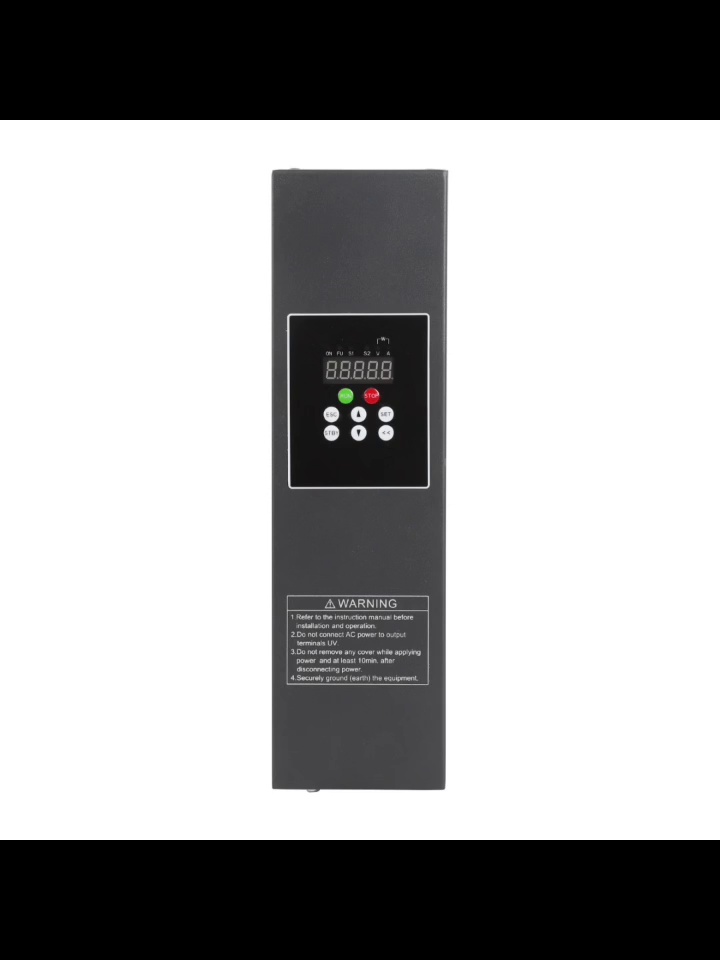

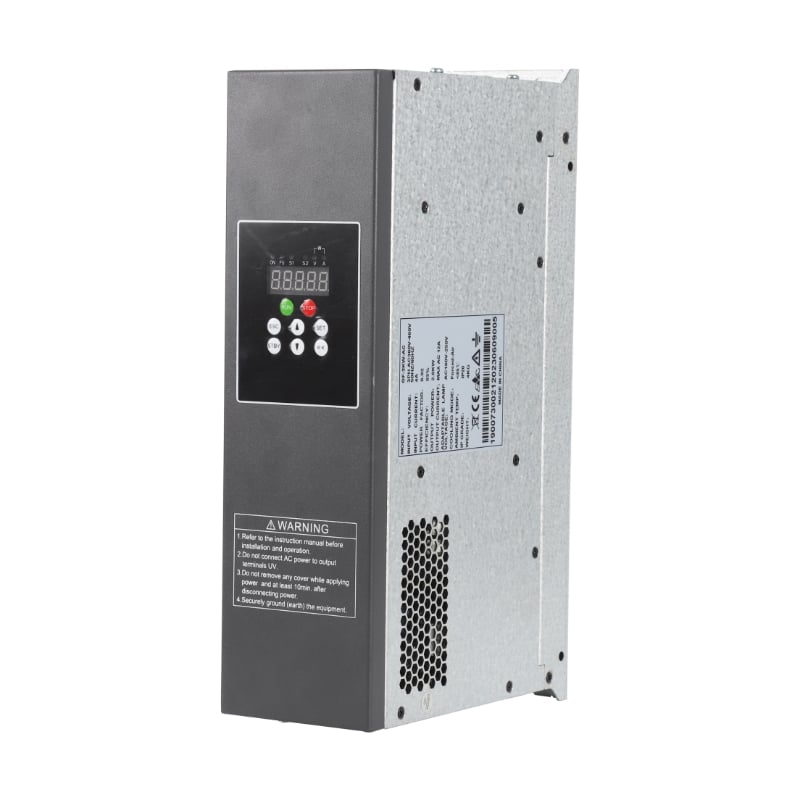

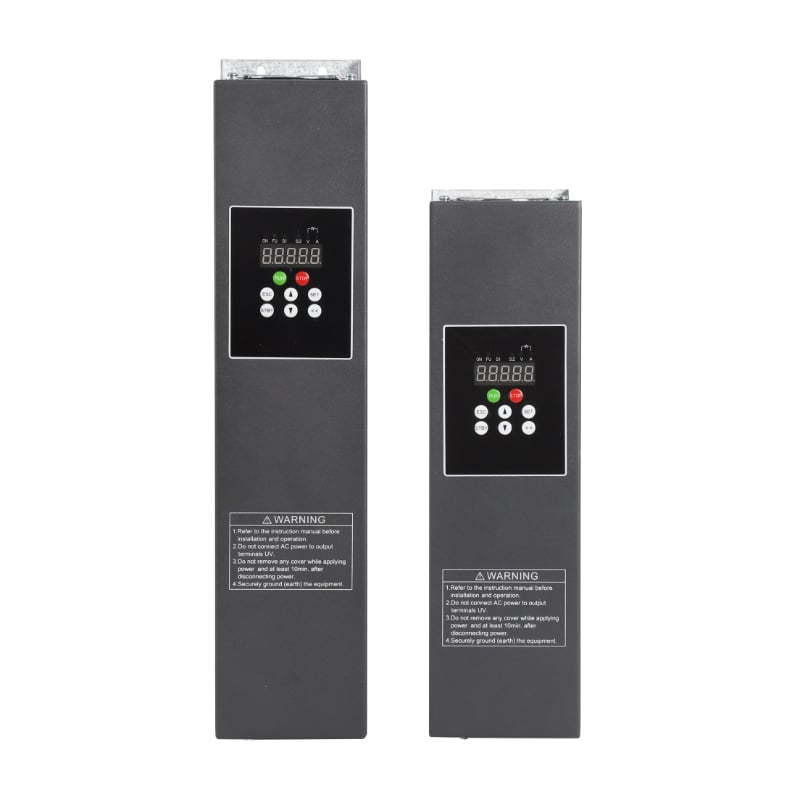

UV Power Supply-S5000 Series

S5000 series is based on the new upgrade of S2000 series, S series machines have the same performance as H series machines, but the volume is much smaller than H series machines, S series products are used in high-current driving occasions with lamp voltage below 450V, 4T (three-phase 380V) model excitation voltage peak at 5KV or more, 2S (single-phase 220V) model excitation voltage peak at 3KV or more, with strong lighting capacity, high output current, rich external expansion features, etc., has been widely used in more than 20 fields such as painting, printing, woodworking, PCB, military and medical.With the characteristics of strong lighting capacity, high output current and rich external expansion functions, the products have been widely used in more than 20 fields, such as painting, printing, woodworking, PCB, military medical and so on.

UV Power Supply-S5000 Series

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Function Introduction

1) Flexible control method: standard operation panel control, external terminal control, and RS485 communication control are optional.

2) Rich lighting characteristics: High-pressure mercury lamp and metal halide lamp parameters are optional.

3) Automatically match the lamp: As long as the rated power of the lamp is set correctly, the power supply automatically compensates for the rated tube voltage error of the lamp.

4) Automatic compensation of lamp ambient temperature: Automatically compensates for energy drops caused by drafts.

5) Status monitoring: This machine comes with an digital tube that displays the working status of the machine and lamps in real time.

6) Rich status signal output: fan control, fault alarm, startup completion, etc.

7) The standard operation panel is easy to use: start and stop control, power setting, status monitoring, parameter modification, etc.

Model List

Contact us if you do not find the match power supply for your lamp.
Model	Power (KW)	Input Current (A)	Output Voltage (V)	Max Current (A)	Recommend Voltage（V）
S5000-2SC006A(C)	0.6	3.0	100-200	8	100
S5000-2SC010A(C)	1	5.0	100-200	10	150
S5000-2SC015A(C)	1.5	7.6	115-200	13	150
S5000-2SC020A(C)	2	10.1	160-220	13	200
S5000-2SC030A(C)	3	17.0	190-220	16	200
S5000-4TB020A(C)	2	3.3	200-420	10	380
S5000-4TB030A(C)	3	4.6	250-420	12	400
S5000-4TB040A(C)	4	6.1	290-420	14	400
S5000-4TB050A(C)	5	8.0	320-420	16	400
S5000-4TB060B	6	9.3	375-420	16	400
S5000-4TB070B	7	11.3	390-420	18	400
S5000-4TB080B	8	12.3	365-420	22	400

Technical Indicators and Specifications

Input	Rated voltage, Frequency		3 PHASE（4T#SERIES）380V 50/60Hz 1 PHASE（2S#SERIES）220V 50/60HZ
	Allowance of Voltage Floating		Determine according to model
Output	Voltage		Determine according to model
	Frequency		8K Hz ～16K Hz
	Overload		110% 10min
Control Method			Vector Control
Control Characteristic	Power setting Resolution		1%
	Current Limit		Power enable settings
	Voltage Limit		110% of the rated tube pressure of the lamp
	Power Limit		Rated output lamp power
	Running Under Voltage Suppression		Especially for users with low grid voltage and frequent fluctuations in grid voltage, even if the voltage is lower than the allowed voltage range, the system can maintain the longest possible operating time based on a unique algorithm and residual energy allocation strategy.
Typical Function	Standby		Set standby power consumption when the device is intermittently used for energy-saving occasions.
	Working Time Records		Able to read the working time of lamps during operation
	RS485 Communication		Standard configuration RS485 communication interface, run and stop commands and machine status reading
	Run Function		External dry contact controls machine start and stop
	Fault Analysis		With fault record query and fault cause analysis functions
Display	Operation Panel	Run State	Optional monitoring of output voltage, output current, set power, output power, etc.
		Parameter Setting	Relevant parameter values can be set according to actual requirements
Protection / Alarm Function			Overcurrent, overvoltage, undervoltage, overheating, short circuit, internal memory failure, etc.
Environment	Ambient Temperature		-10ºC-+50ºC（Not Frozen）
	Ambient Humidity		Below 90% (no frosting)
	Surroundings		Indoor (no direct sunlight, no corrosion, flammable gas, oil mist, dust, etc.)
	Altitude		Below 1000m
Structure	Protection Level		IP52
	Cooling Method		Independent air duct design forced air cooling.
