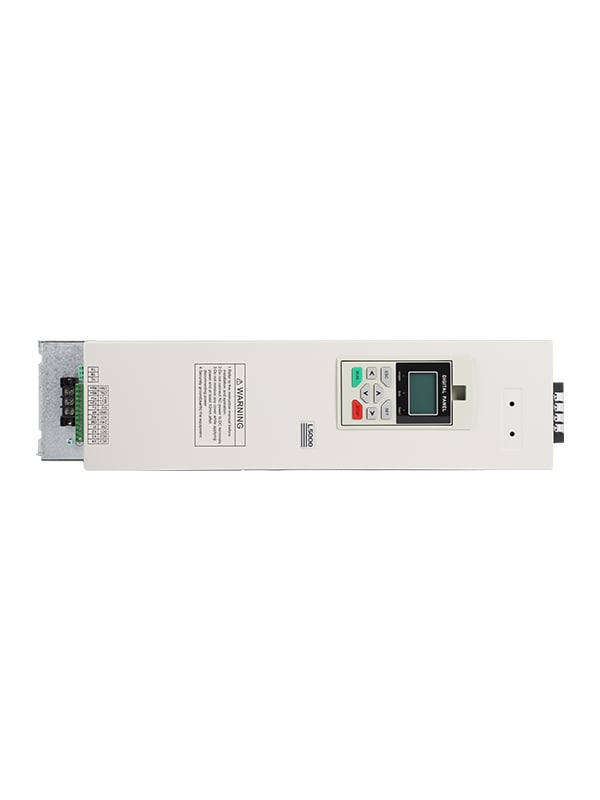

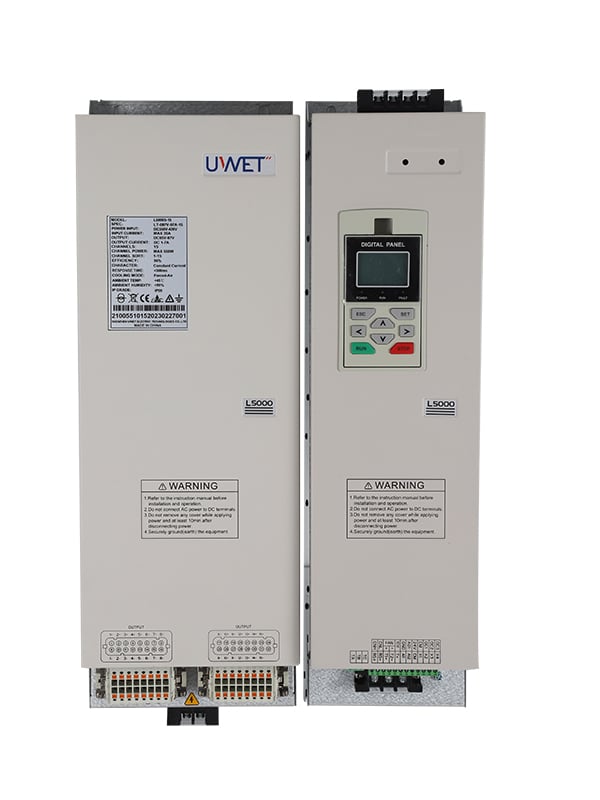

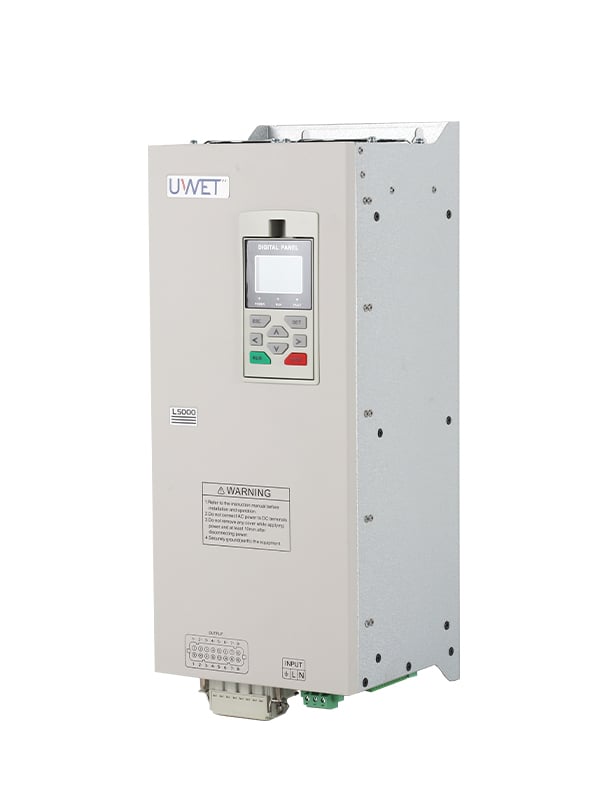

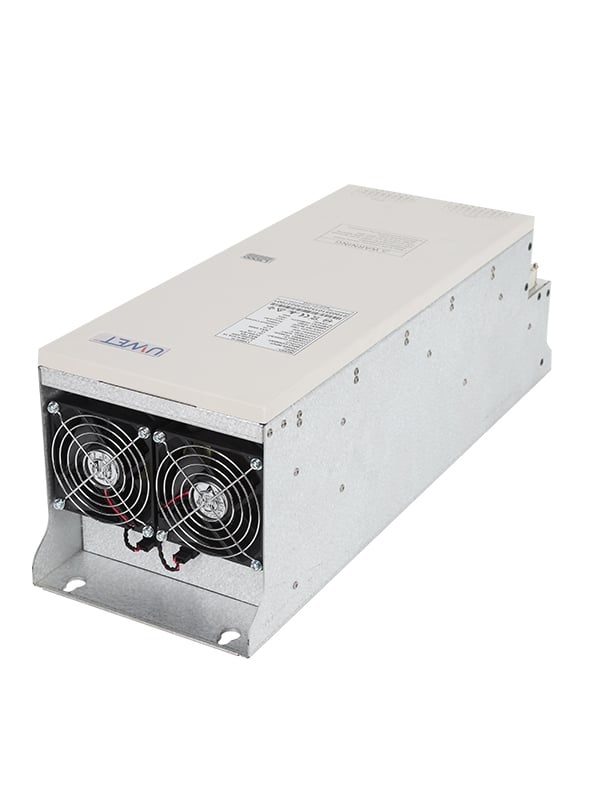

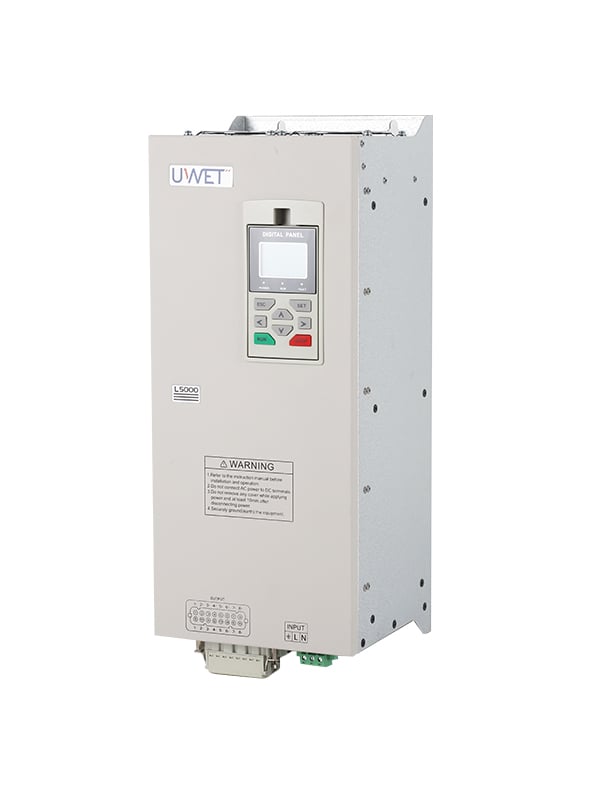

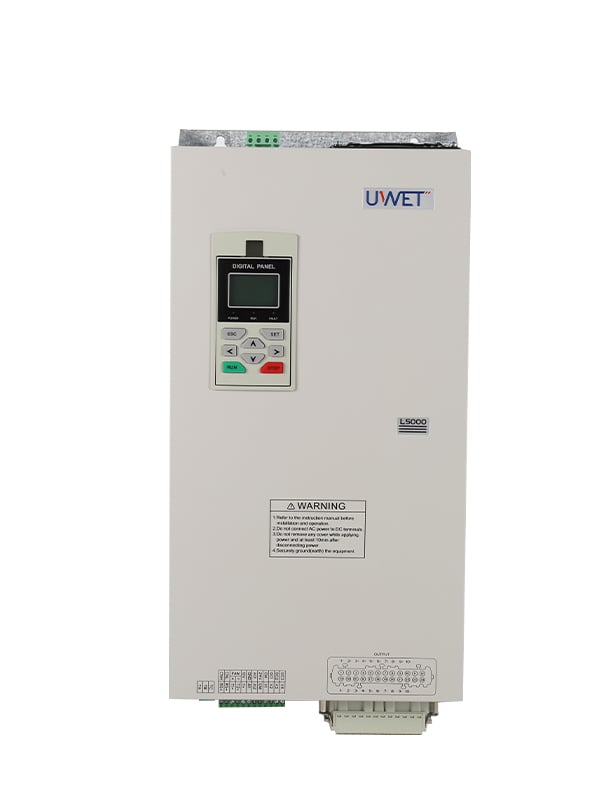

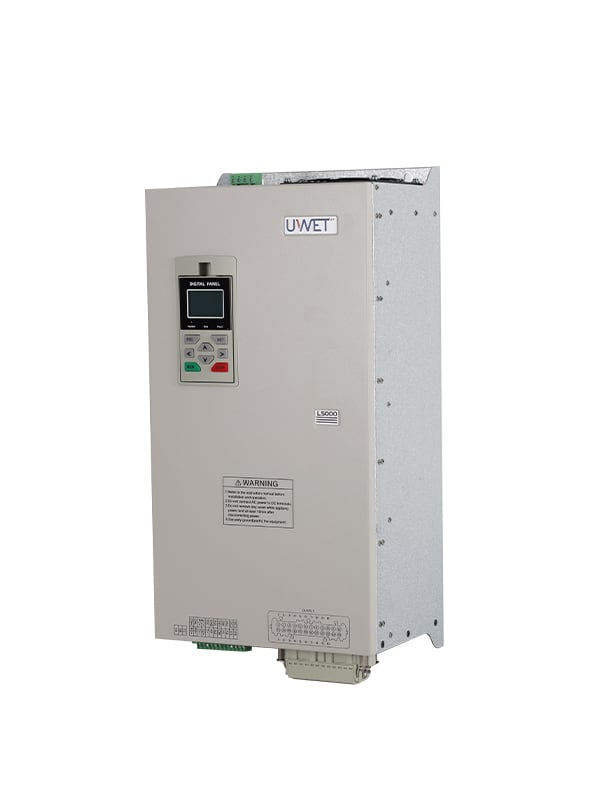

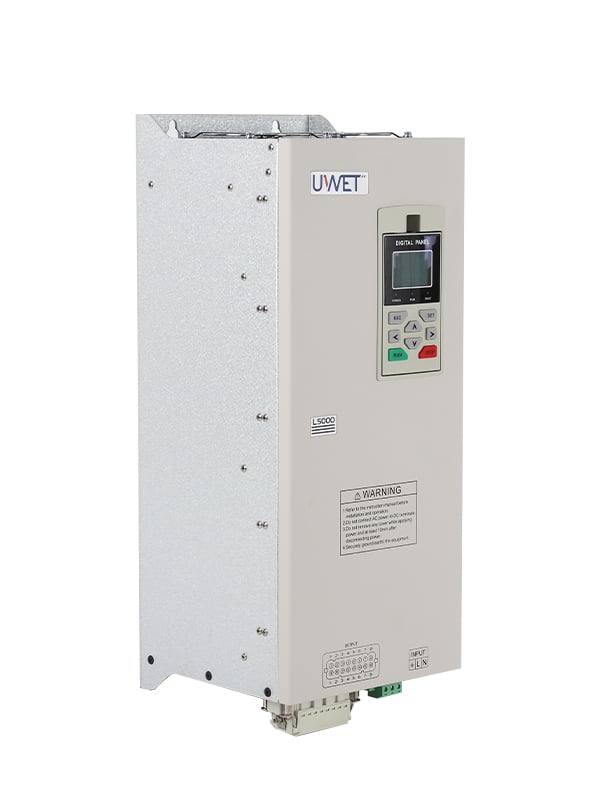

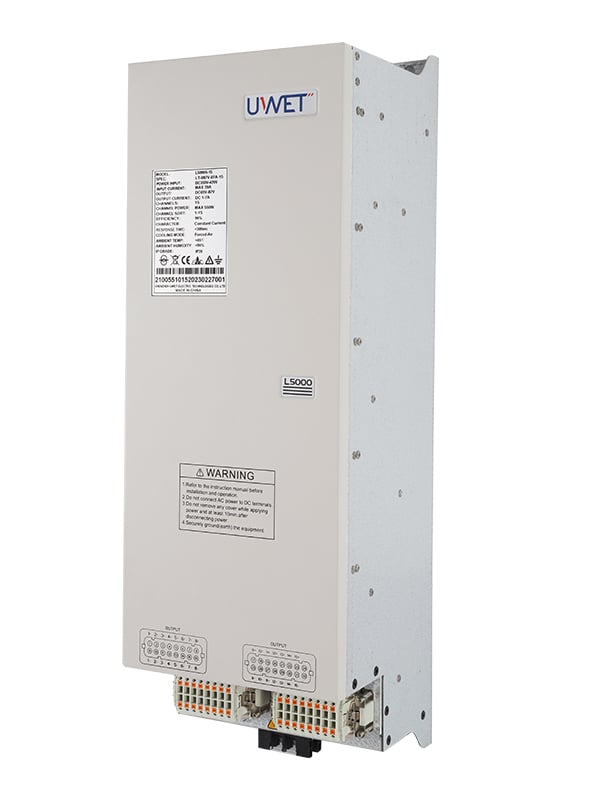

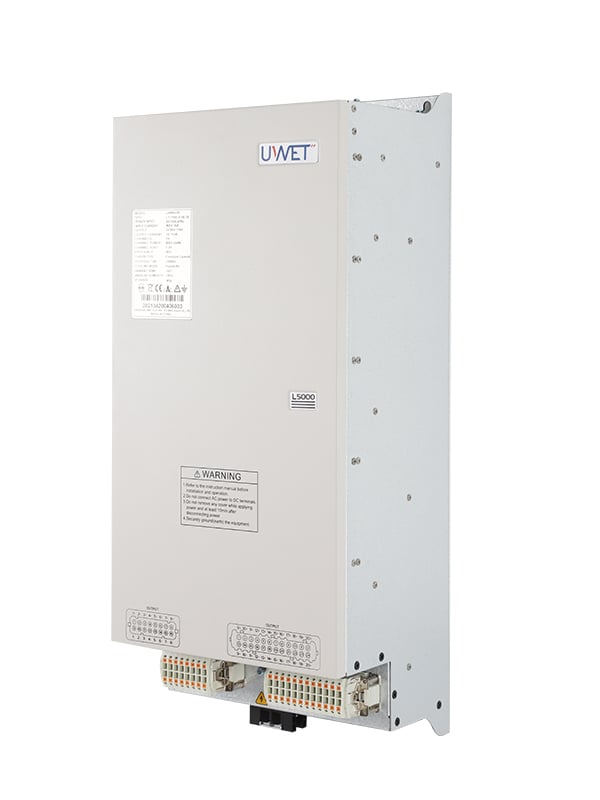

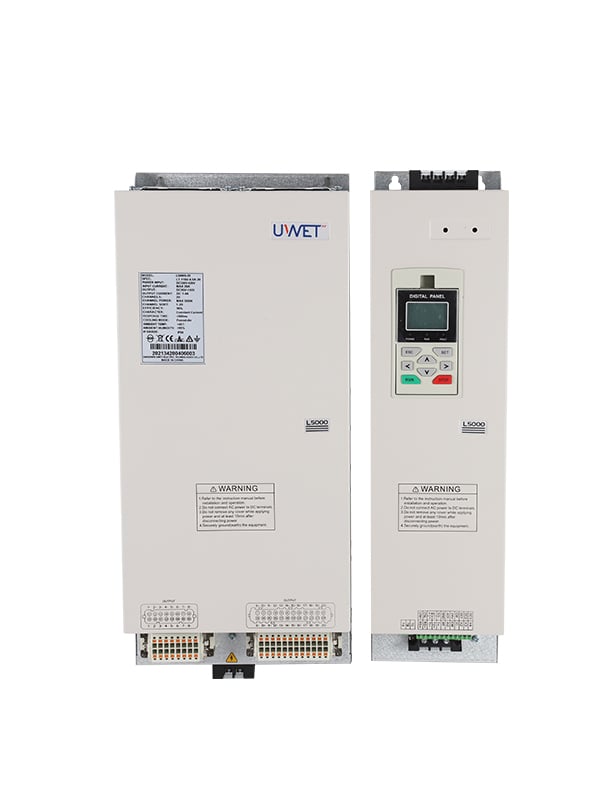

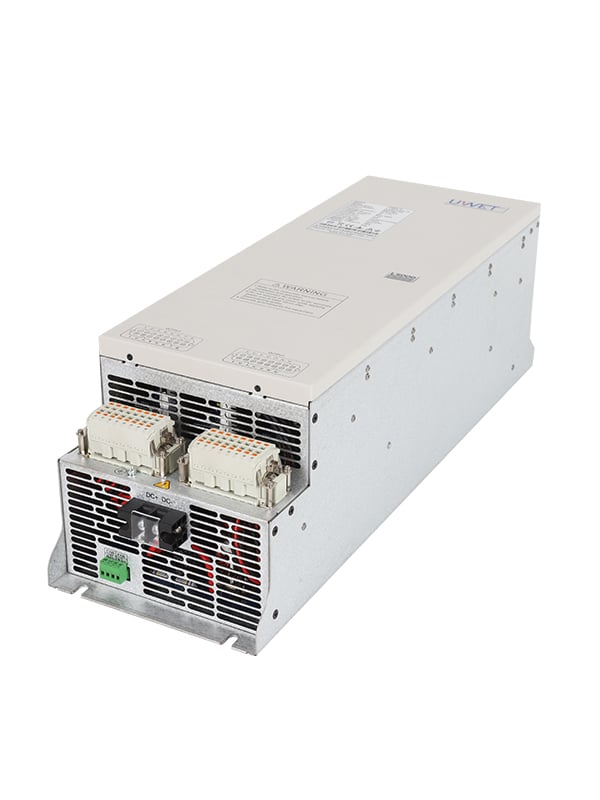

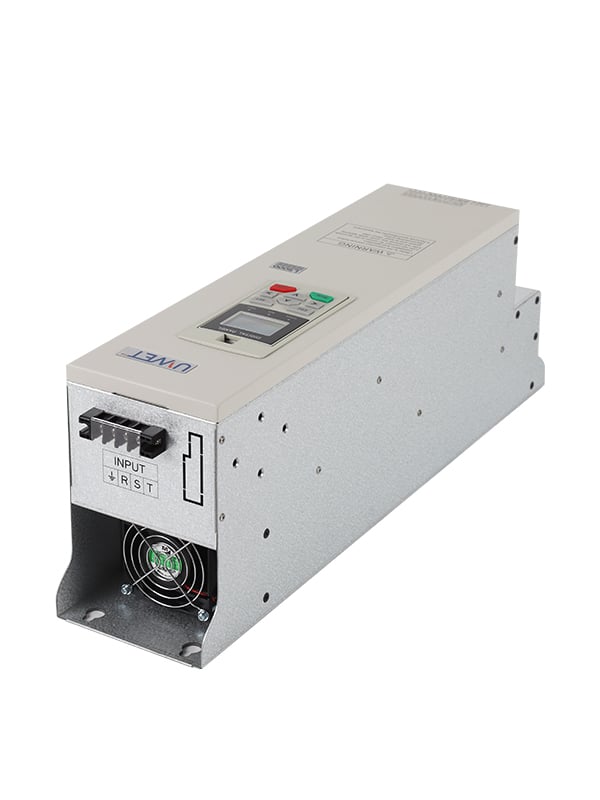

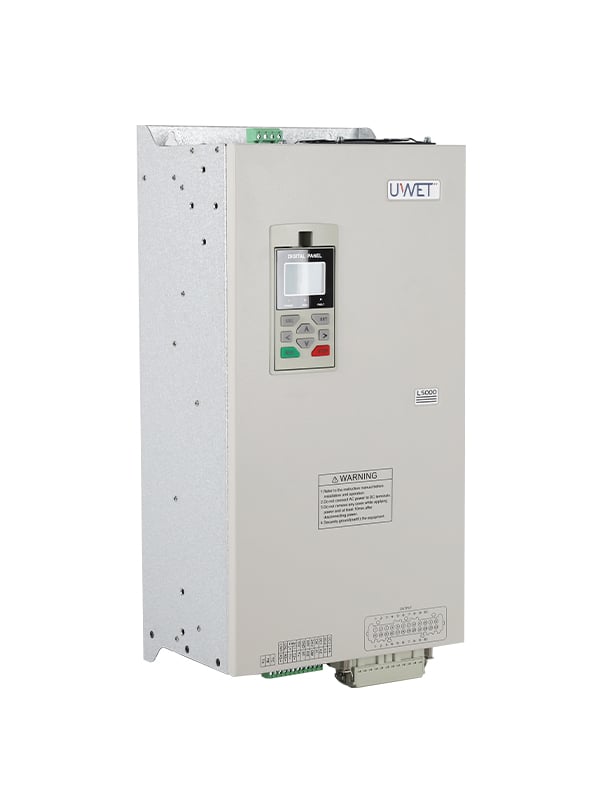

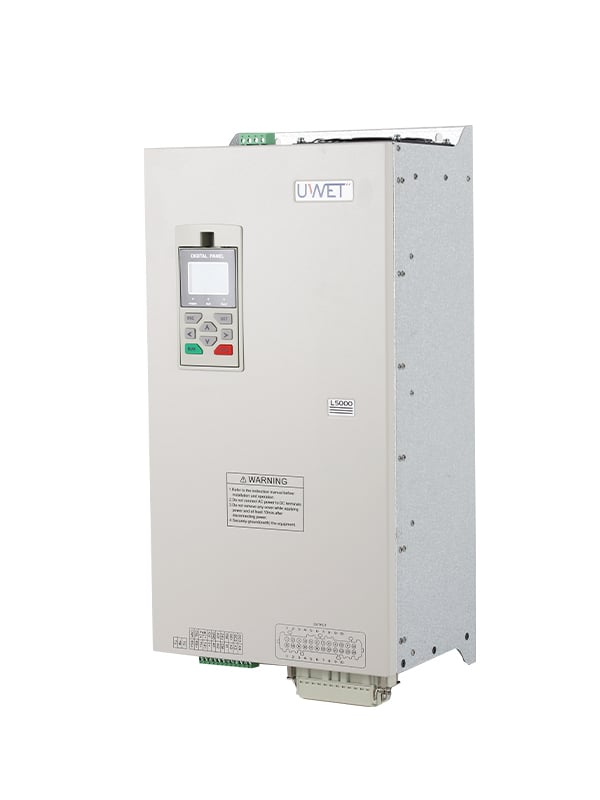

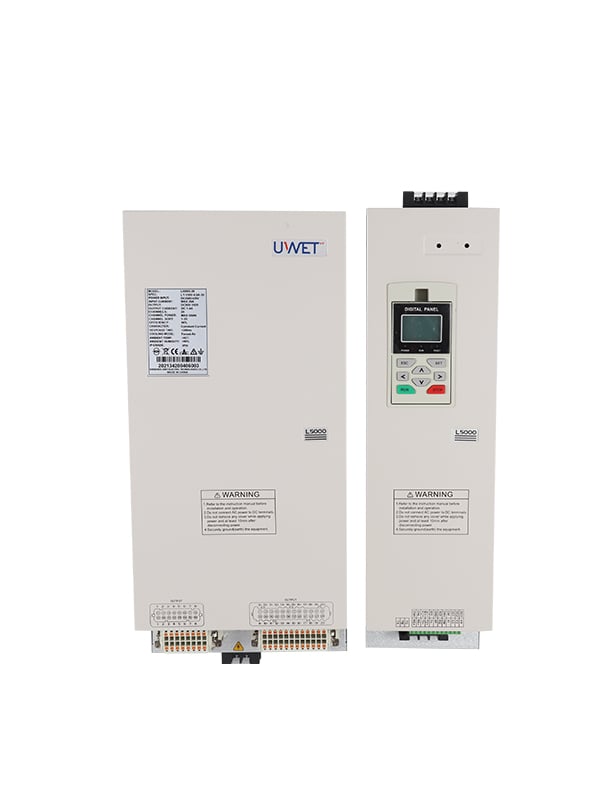

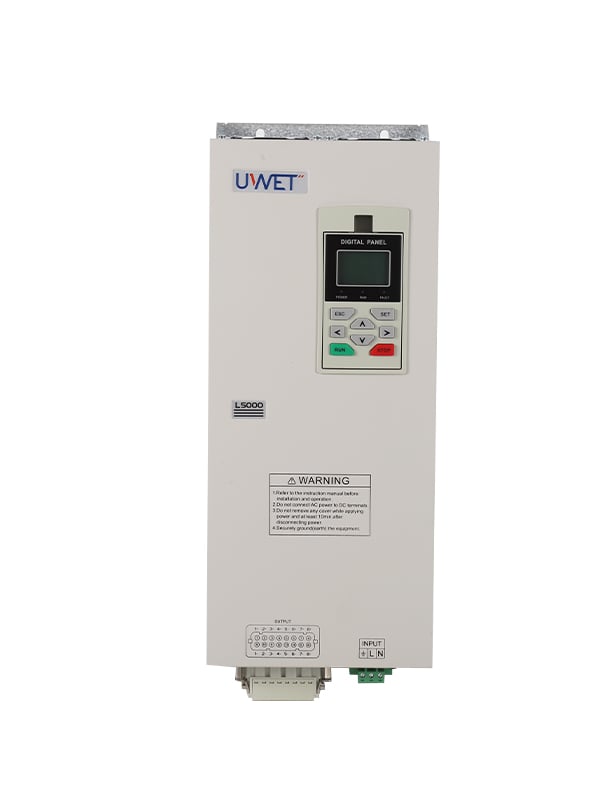

L5000S power system is an intelligent management system specially developed by our company for the
UV LED curing system. The system integrates the power supply of the lamp board, various indicators monitoring
of the lamp board status, supporting assembly control, and data interaction. It is an intelligent platform with
comprehensive management, reliable performance and small size.
1)Optional channel board power. The channel board offers both 550W and 850W power options. Each channel output current is independently adjustable, and has a calibration register with one-thousandth output accuracy that can balance the bead difference by setting the calibration register. A logical main driver can support up to 48 channel controls, with a total power of 36KW.
2)The communication speed is fast. Isolation CAN bus communication between Main control driver and channel module, Control command, arrive in milliseconds.The main control driver is standard equipped with RS485 communication interface, supporting MODBUS RTU protocol, optional extended communication card, and supporting MODBUS TCP protocol based on Ethernet communication.
3)Multiple protection functions. The main power supply module has missing phase protection, under voltage protection, over current protection, etc. The channel module itself supports over voltage protection, under voltage protection, over temperature protection, self-inspection protection, etc. In the case of optional current detection extension card, the LED substrate can be diagnosed, and the short circuit and open circuit each LED bead can be accurately detected (Need to buy separately).
4)Flexible control mode. Support for synchronization, asynchronous, grouping operation mode, visual grouping channel selection, grouping information query, can support up to 16 groups.
5)Abundant external terminal function. One main power supply supports 4 digital input, 4 digital output, 2 analog input, 2 NTC temperature input and 1 analog output.
|Please contact us to provide correct model for your uv led lamp|
|Channel||（input 220V 1 phase）
|（input 380V 3 phase）
|Main Power Supply|
|550W Channel||60||62||9||550||1.7.5KW Main Power Supply
2. 15KW Main Power Supply
3. 17KW Main Power Supply
