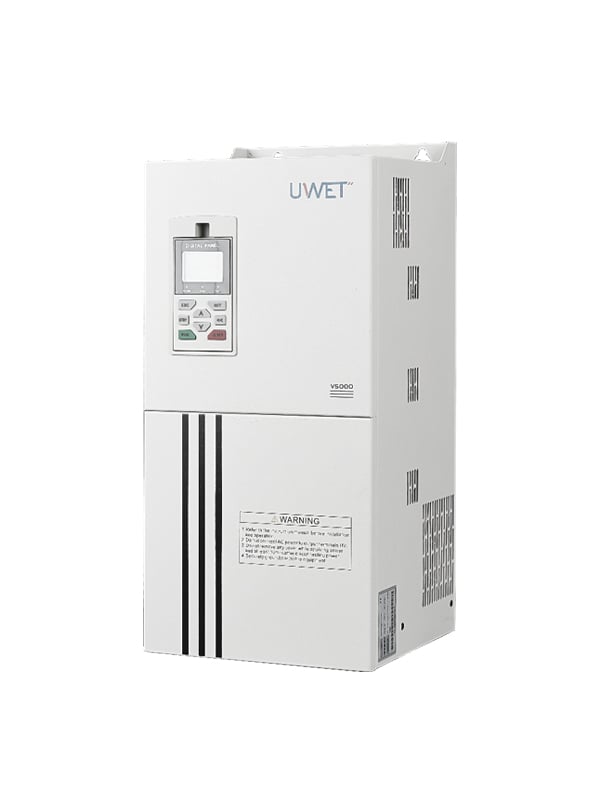

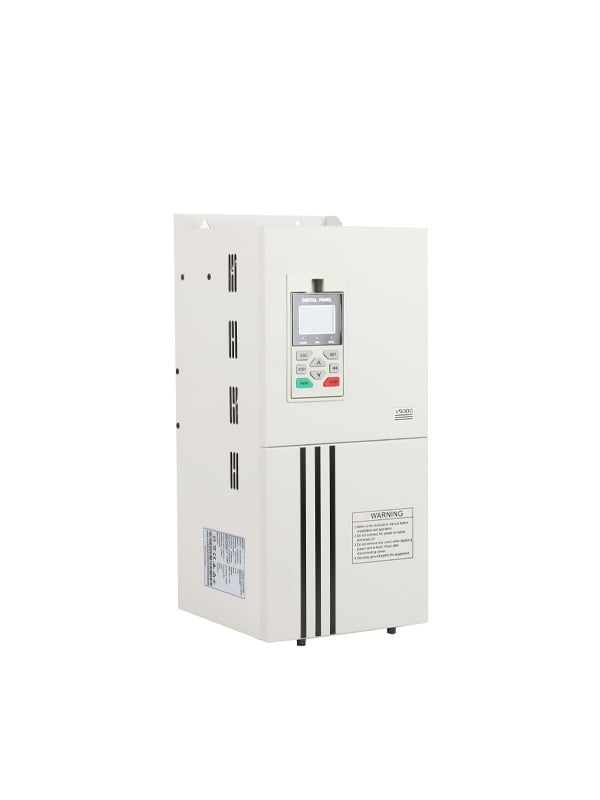

UV Power Supply-H2000 Series

The H series digital power supply is a high-tech product developed for driving gas discharge lamps such as mercury lamps and halogen lamps. The H series products are used in high current driving situations with lamp voltages below 450V. The peak excitation voltage of the 4T (three-phase 380V) model Above 5KV, the peak excitation voltage of the 2S (single-phase 220V) model is above 3KV. It has the characteristics of strong lighting ability, large output current, and rich external expansion functions. It has been widely used in painting, printing, woodworking, PCB, military industry and medical care. More than 20 fields.

UV Power Supply-H2000 Series

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Main Features

Flexible control mode: standard operation panel control, external terminal control, optional RS485 communication control.
Rich lighting characteristics: high voltage mercury lamps, metal halogen lamps parameters are optional.
Automatically match the lamp: As long as the rated power of the lamp is set correctly, the power supply automatically compensates for the rated voltage error of the lamp.
Automatic compensation for ambient temperature of lamps: automatically compensates for the energy drop caused by the exhaust.
Status monitoring: This machine comes with LCD human-machine interface to display the working status of the machine and lamp in real time.
Abundant status signal output: fan control, fault alarm, start-up completion, etc.
Standard operation panel is easy to use: start-stop control, power setting, status monitoring, parameter modification, etc.

Model List

Please contact us if you do not find the match power supply for your lamp.
Input Voltage	Model No.	Max Power	Max Voltage	Max Current	Lamp Voltage	Recommendation
Input Voltage	Model No.	(KW)	(V)	(A)	(V)	（V）
220V 1 phase	H2000-2SC010	1	4.6	100-220	10	200
220V 1 phase	H2000-2SC020	2	9	160-220	13	200
360-460V 3 phase	H2000-4TB030A	3	430	12	300-430	350
360-460V 3 phase	H2000-4TB040A	4	430	15	300-430	420
360-460V 3 phase	H2000-4TB050A	5	430	15	340-430	380
360-460V 3 phase	H2000-4TB060A	6	430	18	340-430	380
360-460V 3 phase	H2000-4TB080B	8	430	20	400-430	420
360-460V 3 phase	H2000-4TB100B	10	430	26	385-430	400
360-460V 3 phase	H2000-4TB120D	12	430	30	400-430	420
200-240V 3 phase	H2000-2TC070D	7	230	35	200-230	200
