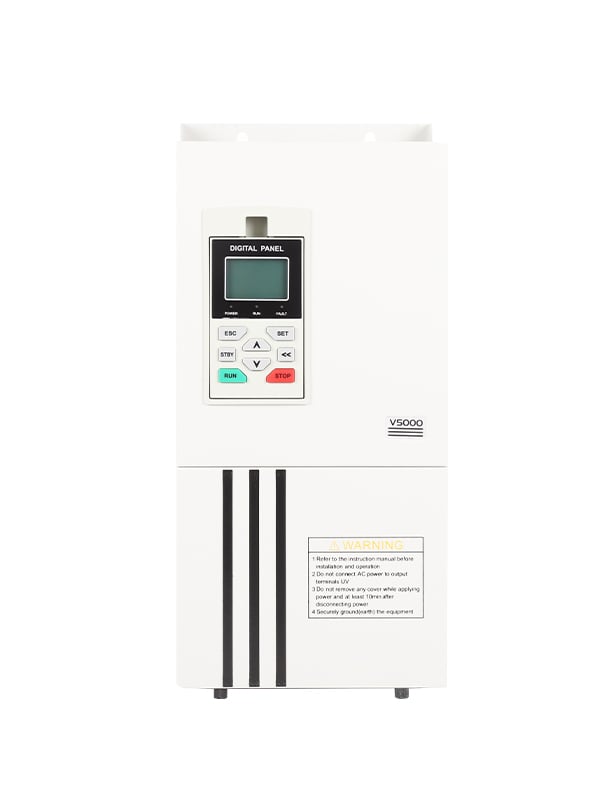

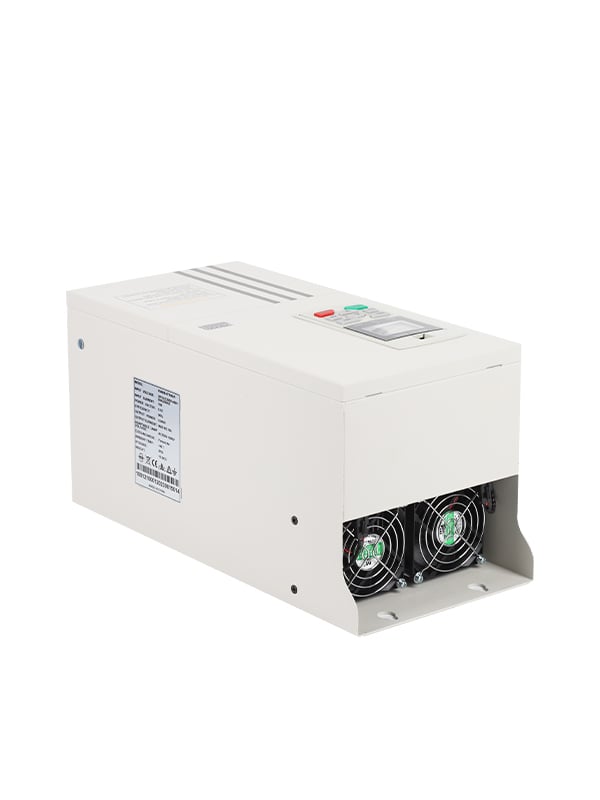

UV Power Supply-V5000E Series

The V5000E series products are the third-generation digital power products independently developed by our company,they are specially developed for driving power of high-pressure mercury lamps, halogen lamps and other gas discharge lamps. V5000 series products are divided into low power series, medium power series and high power series according to power level. The power covers 3-35KW, and it is suitable for gas discharge lamps with 300V~3000V lamp voltage.This series of products have the characteristics of good lighting -up performance , strong excitation ability,power and current double closed-loop vector to control stable energy, and rich extension functions.For example, they are widely used in the ultraviolet (UV) demand industries such as printing ,packaging, building materials,furniture, advertising decoration, mechanicals and automotive electronics.

UV Power Supply-V5000E Series

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Main Features

Input voltage: three-phase 380V (4T) / three-phase 220V(2T)
Input frequency: 50/60HZ
Output voltage: see below model list
Output current: see below model list
Output frequency: 10KHZ
Control method: power vector
Power factor: 0.96
High voltage isolation: isolation
Control interface: RS485, TCP/IP, CANOPEN, digital IO, analog IO

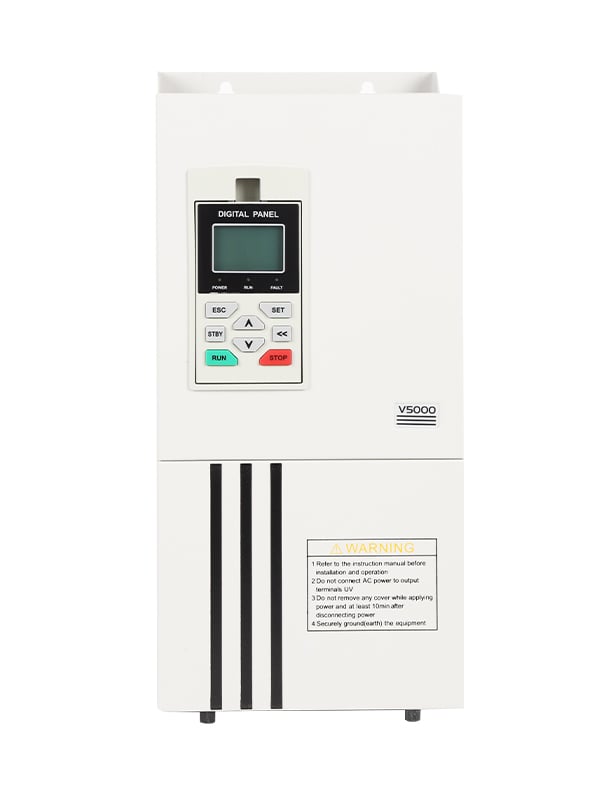

Debugging interface: LCD operation panel, both Chinese and English interface
Built-in lamp exhaust control and optimized PID control fan frequency converter

Model List

Please contact us if you do not find the match power supply for your lamp.
Input	Model	Power	Max Lamp Voltage	Max Current	Voltage Range	Recommendation
Input	Model	(kw)	(V)	(A)	(V)	（V）
360-460V 3 phase	V5000E-4TA030A	3	550	10	400-550	500
360-460V 3 phase	V5000E-4T0030A	3	750	8	550-750	650
360-460V 3 phase	V5000E-4TA040A	4	550	10	400-550	500
360-460V 3 phase	V5000E-4T0040A	4	750	9	550-750	650
360-460V 3 phase	V5000E-4TA050A	5	550	11	450-550	500
360-460V 3 phase	V5000E-4T0050A	5	750	9.5	550-750	650
360-460V 3 phase	V5000E-4T1050A	5	1000	9	750-1000	850
360-460V 3 phase	V5000E-4TA060A	6	550	13	460-550	500
360-460V 3 phase	V5000E-4T0060A	6	750	11	550-750	650
360-460V 3 phase	V5000E-4T1060A	6	1000	10	750-1000	900
360-460V 3 phase	V5000E-4TA080B	8	550	16	500-550	520
360-460V 3 phase	V5000E-4T0080B	8	750	12	550-750	650
360-460V 3 phase	V5000E-4T1080B	8	1000	11	750-1000	900
360-460V 3 phase	V5000E-4T2080B	8	1200	10.5	1000-1200	1100
360-460V 3 phase	V5000E-4T0100B	10	750	15	550-750	650
360-460V 3 phase	V5000E-4T1100B	10	1000	11	750-1000	900
360-460V 3 phase	V5000E-4T2100B	10	1200	10.5	1000-1200	1100
360-460V 3 phase	V5000E-4T3100B	10	1600	12	1200-1600	1400
360-460V 3 phase	V5000E-4T1120D	12	1000	14	750-1000	900
360-460V 3 phase	V5000E-4T2120D	12	1200	14	1000-1200	1100
360-460V 3 phase	V5000E-4T3120D	12	1600	12	1200-1600	1400
360-460V 3 phase	V5000E-4T4120D	12	2000	10	1600-2000	1800
360-460V 3 phase	V5000E-4T2150D	15	1200	14	1000-1200	1100
360-460V 3 phase	V5000E-4T3150D	15	1600	12	1200-1600	1400
360-460V 3 phase	V5000E-4T4150D	15	2000	10	1600-2000	1800
360-460V 3 phase	V5000E-4T2170D	17	1200	15	1000-1200	1100
360-460V 3 phase	V5000E-4T3170D	17	1600	12.5	1200-1600	1400
360-460V 3 phase	V5000E-4T4170D	17	2000	10	1600-2000	1800
360-460V 3 phase	V5000E-4T5170D	17	2400	10	2000-2400	2200
360-460V 3 phase	V5000E-4T3200D	20	1600	15	1200-1600	1400
360-460V 3 phase	V5000E-4T4200D	20	2000	13	1600-2000	1800
360-460V 3 phase	V5000E-4T5200D	20	2400	10	2000-2400	2200
360-460V 3 phase	V5000E-4T6200D	20	2800	8.5	2400-2800	2600
360-460V 3 phase	V5000E-4T3220D	22	1600	16	1200-1600	1500
360-460V 3 phase	V5000E-4T4220D	22	2000	13	1600-2000	1800
360-460V 3 phase	V5000E-4T5220D	22	2400	10	2000-2400	2200
360-460V 3 phase	V5000E-4T6220D	22	2800	10	2400-2800	2500
360-460V 3 phase	V5000E-4T2250E	25	1200	25	1000-1200	1100
360-460V 3 phase	V5000E-4T4250E	25	2000	14	1600-2000	1900
360-460V 3 phase	V5000E-4T5250E	25	2400	12.5	2000-2400	2200
360-460V 3 phase	V5000E-4T6250E	25	2800	11	2400-2800	2600
360-460V 3 phase	V5000E-4T5300E	30	2400	15	2000-2400	2200
360-460V 3 phase	V5000E-4T6300E	30	2800	12	2400-2800	2650
360-460V 3 phase	V5000E-4T6320G	32	2800	12.5	2400-2800	2650
360-460V 3 phase	V5000E-4T6350G	35	2800	13.5A	2400-2800	2650
360-460V 3 phase	V5000E-4T6370G	37	2800	14	2400-2800	2650
360-460V 3 phase	V5000E-4T6400G	40	2800	15	2400-2800	2650
200-240V 3 phase	V5000E-2TA030A	3	550	7	400-600	500
200-240V 3 phase	V5000E-2TA040B	4	550	8	400-600	450
200-240V 3 phase	V5000E-2T0040B	4	750	8	450-750	550
200-240V 3 phase	V5000E-2TA050B	5	550	9	420-600	500
200-240V 3 phase	V5000E-2T0050B	5	750	9	550-750	600
200-240V 3 phase	V5000E-2T1050D	5	1000	8	700-1000	850
200-240V 3 phase	V5000E-2T0060D	6	750	10	500-750	650
200-240V 3 phase	V5000E-2T1060D	6	1000	8	700-1000	850
200-240V 3 phase	V5000E-2T1080D	8	1000	11	700-1000	850
200-240V 3 phase	V5000E-2T2080D	8	1250	10.5	900-1200	1100
200-240V 3 phase	V5000E-2T1100D	10	1000	13	850-1000	900
200-240V 3 phase	V5000E-2T2100D	10	1250	12	1000-1200	1050
200-240V 3 phase	V5000E-2T3100D	10	1600	8	1250-1600	1500
200-240V 3 phase	V5000E-2T1120D	12	1000	14	860-1000	950
200-240V 3 phase	V5000E-2T2120D	12	1250	13	1000-1200	1100
200-240V 3 phase	V5000E-2T3120D	12	1600	11	1200-1600	1450
200-240V 3 phase	V5000E-2T3150E	15	1600	11	1400-1600	1500
200-240V 3 phase	V5000E-2T3160E	16	1600	11	1200-1600	1550
200-240V 3 phase	V5000E-2T3180G	18	1600	12	1200-1600	1500

Technical Indicators and Specifications

Input	Rated voltage, frequency		（4T#series）380V 3PHASE 50/60Hz （2T#series） 220V 3PHASE 50/60Hz （5T#series）480V 3PHASE 50/60Hz
	Voltage allowable range		Determined by model
Output	Lamp Voltage		Determined by model
	Frequency		8K Hz ～16K Hz
	Overload Capability		110% 10min
Control Mode			Vector Control
Control Characteristic	Power Setting Resolution		1%
	Current Limitation		Power Allowable Setting
	Voltage Limitation		110% of rated lamp voltage
	Power Limitation		Max Rated Output Power of Lamp
	Under-voltage suppression in operation		Especially for users with low grid voltage and frequent fluctuation of grid voltage, even below the allowable voltage range, the system can maintain the longest running time according to unique algorithm and residual energy allocation strategy.
Typical Function	Standby		Set standby power consumption when equipment is intermittent for energy-saving applications
	Working Time Record		can read lamp working time in operation
	RS485 Communication		Standard Configuration RS485 Communication Interface, Running and Stopping Commands and Machine Status Reading
	The Function of Operation		Using External Dry Contact Control to Start and Stop
	Fault Analysis		with function of fault record query and fault cause analysis
Display	Operational panel display	Operational Status	Monitor output voltage, output current, set power, output power, etc.
		Parameter Setting	Set the relevant parameter values according to actual requirements.
Protection / Alarm			Protection / Alarm of Over current, overvoltage, under voltage, overtemperature, short circuit, internal memory failure
Environment	Ambient temperature		-10ºC--+50ºC（not frozen）
	Ambient humidity		Below 90%（no frost）
	Ambient environment		Indoor (no direct sunlight, no corrosion, no flammable gas, no oil mist, no dust, etc.)
	Altitude		Below 1000m
Structure	Degree of Protection		IP52
	Cooling Method		Independent air-duct design forced air cooling
